Description

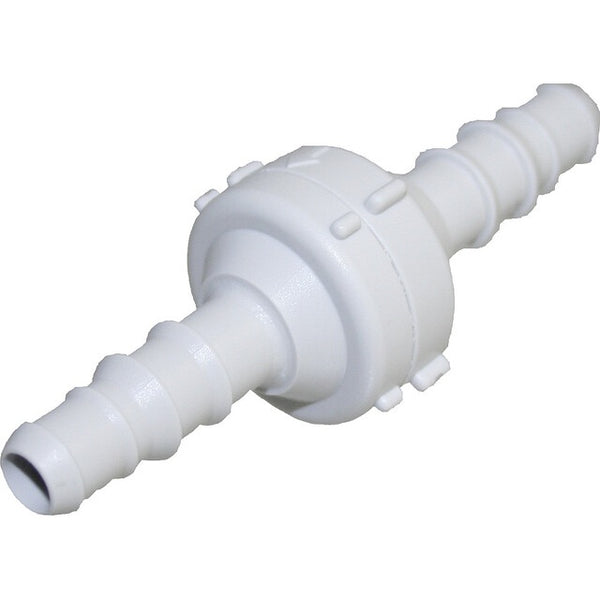

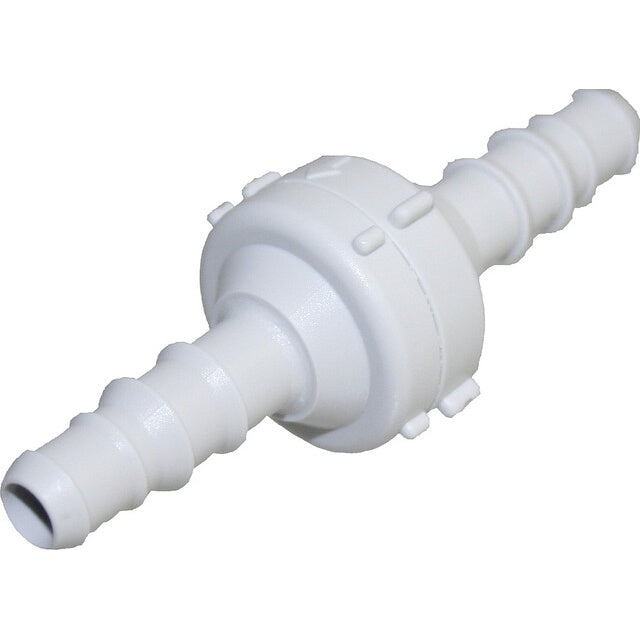

The check valve for the UniQuick pipe system (12 mm) combines easy installation with maximum hygiene and temperature resistance. Ideal for drinking water and food applications – tested according to current German and European standards.
Key benefits:
- Plug-in assembly without screws, gluing or welding – fast, requires few tools and is reusable
- Food and drinking water compliant material, temperature resistant up to 90 °C
- 100% tightness up to 6 bar (at 80 °C) – Max. operating pressure: 6 bar
- Frost-resistant and mechanically robust
- Full flow capacity without cross-section-restricting nozzles
Technical specifications:
- Design: Check valve 2x standard nozzle
- System type: UniQuick
- Dimensions: 12 mm
The UniQuick check valve from REICH is particularly suitable for household, caravan, boat and commercial drinking water installations where simple installation, hygiene and permanent tightness are required.
Produkteigenschaften
- Produkt-ID: 21764
- Betriebsdruck max.: 6 bar
- Systemtyp: UniQuick
Produktsicherheit
Warn- & Sicherheitshinweise
We recommend that installation be carried out by qualified personnel in accordance with applicable local regulations.
Hersteller
- Reich GmbH Regel- u. Sicherheitstechnik
- Ahornweg 37
- 35713 Eschenburg-Wissenbach
- Deutschland
